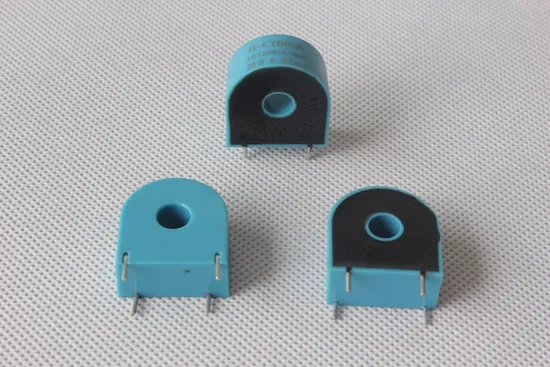

CT with 5A/5mA for PCB Mount Board

Basic Info.

Model NO.	H-CT003A
Phase	Single
Operation Condition	Indoor
Usage	Protection, Measurement
Winding Form	Single Layer & Tightly Wound Type
Insulating Medium	Epoxy Resin
Installation	Penetration Type
Magnetic Circuit Structure	Single Stage Type
Voltage Transformation Principle	Electromagnetic Type
Product Name	Current Transformer
Model	H-CT003A
Rate Current	5A
Max Current	10A
Secondary Current	5mA
Winding Ratio	1:1000
Burden Resistance	10 Ohm
Pin Length	5mm
Pin No	2
Net Weight	Approx 12g
ODM	Customization
OEM	Customization
Anti Mangnetic	No
RoHS	Customization
Supply	Jiaxing Haihan Electron Co., Ltd
Transport Package	Standard Export Carton
Specification	H-CT003A
Trademark	E-power
Origin	China
HS Code	8504311000
Production Capacity	300, 000PCS Per Months

Packaging & Delivery

Package Size41.00cm * 45.00cm * 26.00cm Package Gross Weight15.200kg

Product Description

Company Information
Jiaxing Haihan Electronic Co., Ltd was established in 2011, We are a professional in designing and manufacturing two series products.we supply spare parts for electricity meter, such as current transformer, stepper motor counter, manganin shunt, magnetic latching relay, single-phase or three-phase cases, DIN-Rail single-phase energy meter or DIN-Rail three-phase energy meter

1,About Current transformers series
Current transformer provide a simple, inexpensive and yet accurate means of sensing current flow in power conductors. They are available in 5 basic configurations:1.1,Three phase and single phase energy meter CT's are available from measuring currents 0-120Amps.

1.2,PCB mount (H-CT003 series) Core CT's are available for measuring currents from 0 to 150 Amps.


1.3, Ring/ZERO(H-CT004 series) Core CT's are available for measuring currents from 0 to 5000 Amps.

1.4, Clamp on Core CT's(H-CT007 series) are available for measuring currents from 0 to 5000Amps.
1.5,BH (H-CT021 series) Core CT's are available for measuring currents from 0 to 6000 Amps.


2,Flexible rogowski coil of CT's are available from measuring currents 0-10000Amps

Rogowski Coil are designed for fast&easy installation on existing primary conductors. The split design permits non-contact AC current or current pulse measurement without requiring that the primary conductor be taken offline and disconnected for the current sensor installation. This method provides for the safe, easy and portable measurement of current.

3,Latching relay for single phase or three phase electronics are available from measuring currents 0-20Amps


4,Mechanical counter for single phase or three phase electronics.


5,Maganin shunt for single phase or three phase electronics are available from measuring currents 0-120Amps


6,Payment and delivery

Model	Current ratio	Load resistance	Winding ratio	Accuracy
H-CT003A	5(10)A/2.5mA	10Ω	1:2000	0.1Class
	5(10)A/5mA	10Ω	1:1000	0.2Class
	5(20)A/2.5mA	10Ω	1:2000	0.1Class
	5(30)A/2.5mA	10Ω	1:2000	0.1Class
	5(30)A/5mA	10Ω	1:1000	0.1Class

Model	Current ratio	Winding ratio	Load resistance	Accuracy
H-DCT028	10(100)A/4mA	1:2500	20Ω	0.1Class
H-DCT028	CT1:5(60)A/2.5mA CT2:5(30)A/2.5mA	1:2000	10Ω	0.1Class
H-DCT025	10(100)A/4mA	1:2500	20Ω	0.1Class
H-CT027	1(10)A/2mA	4:2000	12.5Ω	0.05Class
