30A UL Certification Single Phase Current Transformer Zct Analog Current Sensor

Basic Info.

Model NO.	ECS2430-2
Phase	Single
Operation Condition	Outdoor
Usage	Measurement
Winding Form	Single Layer & Tightly Wound Type
Insulating Medium	Insulating Paper
Installation	Active Type
Magnetic Circuit Structure	Single Stage Type
Voltage Transformation Principle	Electromagnetic Type
Transport Package	48PCS/Box
Trademark	ECHUN
Origin	China
HS Code	8504500000
Production Capacity	1000PCS/Month

Product Description

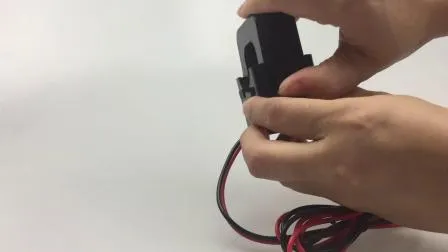

30A ul certification single phase current transformer zct analog current sensor

The ECS24-S series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation

Customized current ratio available.

Customized current ratio available.

Applications:
Current measurement
Monitoring and protection
Energy and sub-metering products
Network equipment
Instruments and sensors
Control systems

Advantage:
Mount easy.
Excellent linearity over the whole range.
Fully RoHS compliant.

Rated Primary Current(Amp.) 50/60Hz	30nom(0.1~60A max)
Turn ratio	Np:Ns=1:600
Current Ratio	30A/50mA
Accuracy@RL=10Ω	1%
D.C. Resistance at 20 ºC(Ω)	13±10%
Phase Error at Rated Current Range	≤1'
Protection Level	7.5 Vo (Peak)
Operating Temperature Range	-40~70ºC
Storage Temperature Range	-45~85ºC
Dielectric Withstanding Voltage(Hi-pot)	2.5KV/1mA/1min
Impluse Withstand Voltage	5KV Peak
Insulation Resistance	DC500V/100MΩ min

Part Number	Input Current	Available Outputs
ECS24-100	100A	Current Outputs @20mA,33.3mA,40mA,100mA,1A,5A; Voltage Outputs @0.25V,0.333V,0.5V,1V,2V.
ECS24-150	150A
ECS24-200	200A
ECS24-250	250A
ECS24-300	300A
