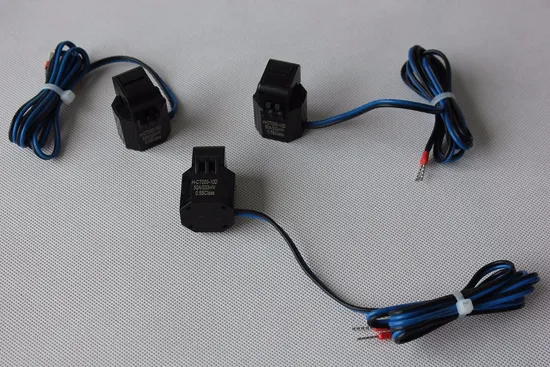

Mini Split Core Current Transformer 15A/5mA

Basic Info.

Model NO.	H-CT005-10D
Phase	Three
Operation Condition	Indoor
Usage	Measurement
Winding Form	Single Layer & Tightly Wound Type
Insulating Medium	Epoxy Resin
Installation	Direct Connected
Magnetic Circuit Structure	Combined Type
Voltage Transformation Principle	Capacitive Type
Model	H-CT005-10d
Current Ratio	15(60)a/5mA
Rate Primary Current	15A AC
Max Primary Current	60A AC
DC Resistance	50ohm
Turn Ratio	3000:1
Wire Lead	AWG#22
Frequency	50/60Hz
Diameter	10mm
Producter	Jiaxing Haihan Electron Co., Ltd
Function	Storage
Display	Digital
Environment	Low Temperature
Warranty	with Warranty
Power Source	DC 100V-300V
Transport Package	Standary Export Carton.
Specification	500*400*300
Trademark	E-Power
Origin	China
HS Code	85045000
Production Capacity	20, 000/Month

Packaging & Delivery

Package Size41.00cm * 28.00cm * 26.00cm Package Gross Weight15.200kg

Product Description

T he H-CT005 Series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These current transformer's can be mounted without removing existing cables for easier installation.1, Electrical Specifications

1), Rated Primary Current(AMP. ) 50/60Hz: 60nom(1~60A max)

2), Max. Current (continuous): 0A

3), Turn ratio: Np: Ns=1: 3000

4), Current Ratio: 10A/3.33mA

5), D. C. Resistance Max at 20 º C: 460 Ω

6), Accuracy@RL≤ 10Ω : 1%

7), Linearity@RL≤ 10Ω : 0.5%

8), Phase error at rated current range: ≤ 4°

9), Operating Temperature Range: -25~65º C

10), Storage Temperature Range: -35~85º C

11), Dielectric Withstanding Voltage(Hi-pot): 2.5KV/1mA/1min

12), Impulse Withstand Voltage: 5KV Peak

13), Insulation Resistance: DC500V/100MΩ Min

2, Applications.

A, Portable/Curret instruments.

B, Sub-metering.

C, Monitor Motor Loads

3, Feature

A, Small size.

B, Low cost

C, High secondary turns.

D, Secure locking hings

E, Full RoHS compliant

F, Mounting easy.
