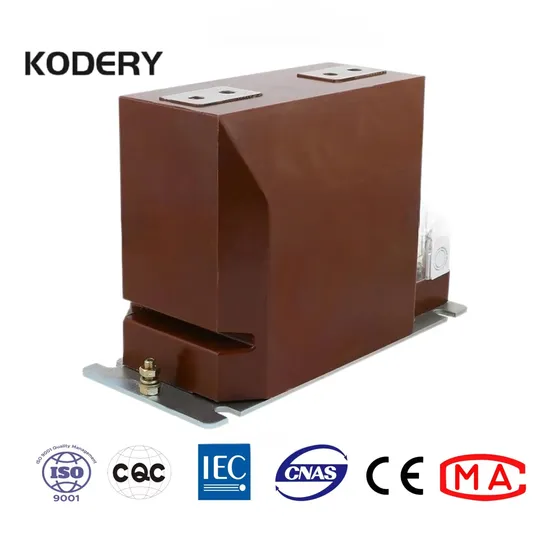

Factory Price 20kv 22kv 24kv Indoor Single Phase Current Transformer Lzzbj9
Overview LZZBJ9-10A type current transformer is epoxy resin cast strut conditions indoors. For protection or energy meas
- Overview
- Product Description
- Product Parameters
- Detailed Photos
- Company Profile
Basic Info.
| Phase | Three |
| Operation Condition | Indoor |
| Usage | Protection, Measurement |
| Winding Form | Multilayer Honeycomb Type |
| Insulating Medium | Epoxy Resin |
| Installation | Strut Type |
| Magnetic Circuit Structure | Single Stage Type |
| Voltage Transformation Principle | Electromagnetic Type |
| Transport Package | Wooden Packing |
| Trademark | KODERY |
| Origin | China |
| HS Code | 8504311000 |
| Production Capacity | 50pieces/Week |
Product Description
LZZBJ9-10A type current transformer is epoxy resin cast strut conditions indoors. For protection or energy measurement of the power system with rated frequency 50Hz rated voltage of 10kV and below, which LZZBJ9-10A installed in the center switchgear on other types of switchgear
| Rated current ratio(A) | Accuracy class | Rated output(VA) | Raod short time thermal current((kA)(rms) | Dynamtc current(kA)(peak) |
| 5-400/5 | 0.2S/0.5 0.2S/10P10 0.5/10P10 | 1 | 90/S | 225 |
| 500/5 | ||||
| 600/5 | ||||
| 750/5 | 0.2S/0.5 0.2S/10P10 0.5/10P10 | 15/15 | 60/2s | 150 |
| 800/5 | ||||
| 1000/5 | ||||
| 1200/5 | 0.2S/0.5 0.2S/10P10 0.5/10P10 | 20/20 | 45/4s | 110 |
| 1500/5 | ||||
| 2000/5 |
