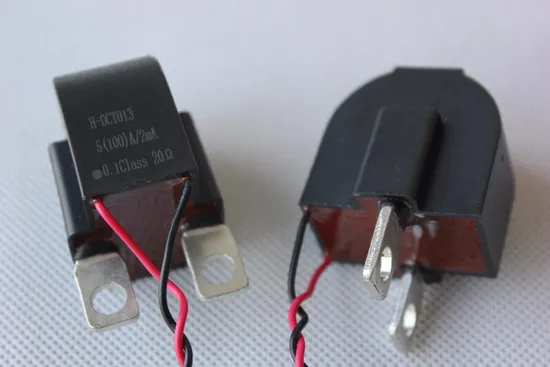

CT with 5A/2mA

Basic Info.

Model NO.	H-DCT013
Phase	Three
Operation Condition	Indoor
Usage	Protection, Measurement
Winding Form	Single Layer & Tightly Wound Type
Insulating Medium	Epoxy Resin
Installation	Active Type
Magnetic Circuit Structure	Single Stage Type
Voltage Transformation Principle	Electromagnetic Type
MFG Name	Jiaxing Haihan Electron Co.,Ltd
Current Ratio	5A/2mA
Input Current	0-100A
Output Current	0-2mA
Coil Ratio	1:2500
Accuracy	0.1class
Resistance Values	20 Ohm
DC Immunity	Yes
Mini Order Quantity	5000PCS
Transport Package	CTN
Specification	54*34*28CM
Trademark	E-POWER
Origin	China
HS Code	8504311000
Production Capacity	300000PCS/Months

Product Description

1, Mainly Feature

1), All enclosed design, good performance of mechanical and insulation.

2), This series of CTs have small size that can be used as separate.

3), Leaner output with high accuracy current.

4), Smalll size, light weight, standard hole easy to installation.

5), Top quanlity and resonable price.


2, Application

1), Multi-funcational energy meter

2), Prepayment energy meter

3), Reactive energy meter

4), Watt-hour meter

5), Multi-rate watt-hour meters

6), Maximum demand energy meter.

7), Standard electric energy meter

8), Meter for industry and home use.


3, Technology Requirements
Meeting to the requirement of IEC185 and GB1208-97, fitting to the single phase or multi-phase electronic meter under voltage of working frequency 50(60) Hz.

4, Package and shipment
The individual package and the group box package are all available which guarantee the goods in a good state in shipment as well as be counted in facility.

5, In Storing
Room temperature is between -45~80, º C air humidity is less than 90%(@25º C) and any eroding gas or other harmful gas should be avoided

If you want to know more information for this model: H-CT009, Please feel free to contact with us.

Thank you very much for your attention.

Pri. Current		Sec. Current	Accuracy	Resistance	Temperature	Humidity (25º C)	Turn ratio
Rate (In)	Max(Imax)
5A	100A	2mA	0.1class	20Ω	-40- 70º C	≤ 95%	1: 2500
